Battery on the Energy Map
Read charge, discharge and reserve context, then open battery details for the connected inverter.
Reviewed
The Battery asset shows idle, charging or discharging, plus charge level and temperature when those readings exist. Open it for battery control.

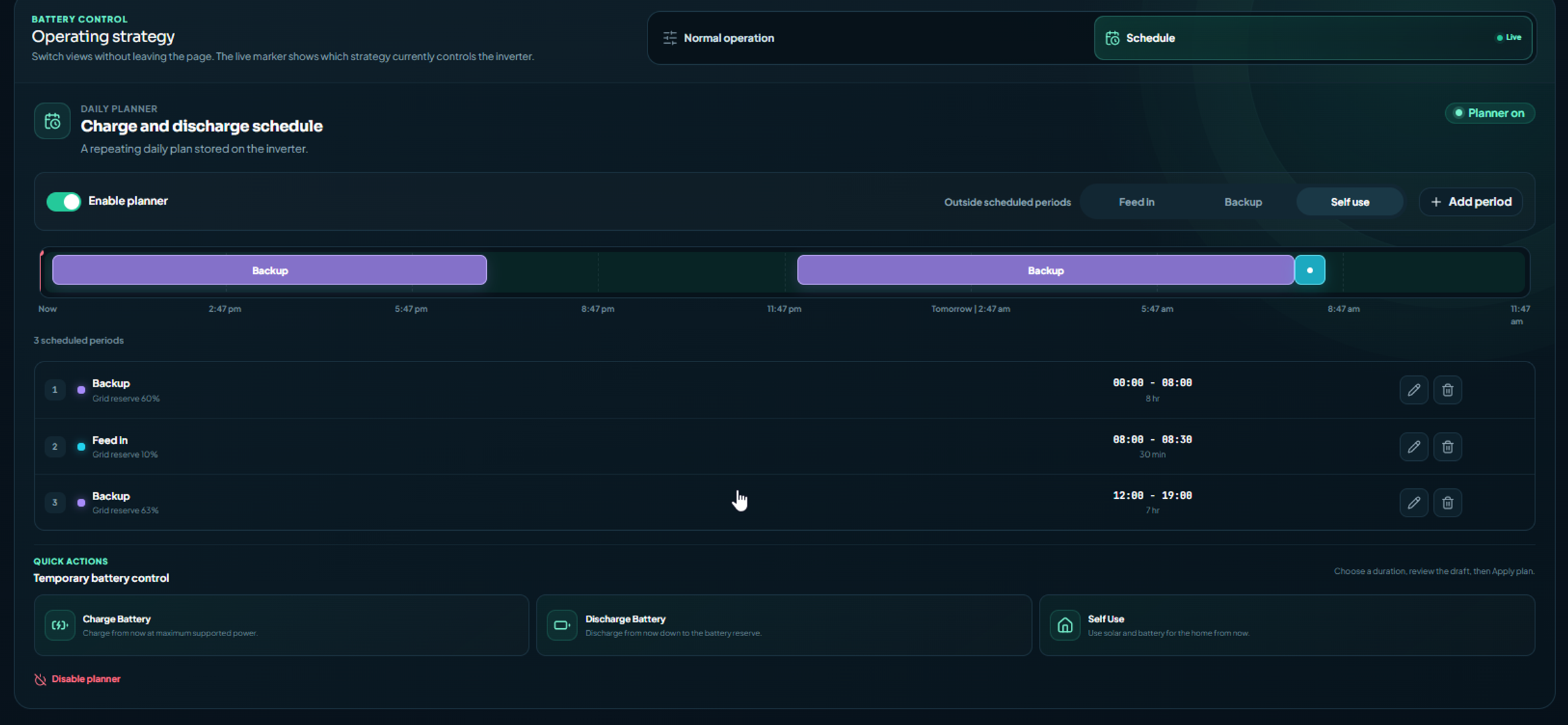

Operating strategy
The live marker shows which strategy currently controls the inverter. You can switch views without leaving the page. Schedule is the repeating daily plan stored on the inverter when the planner is enabled.
Daily planner

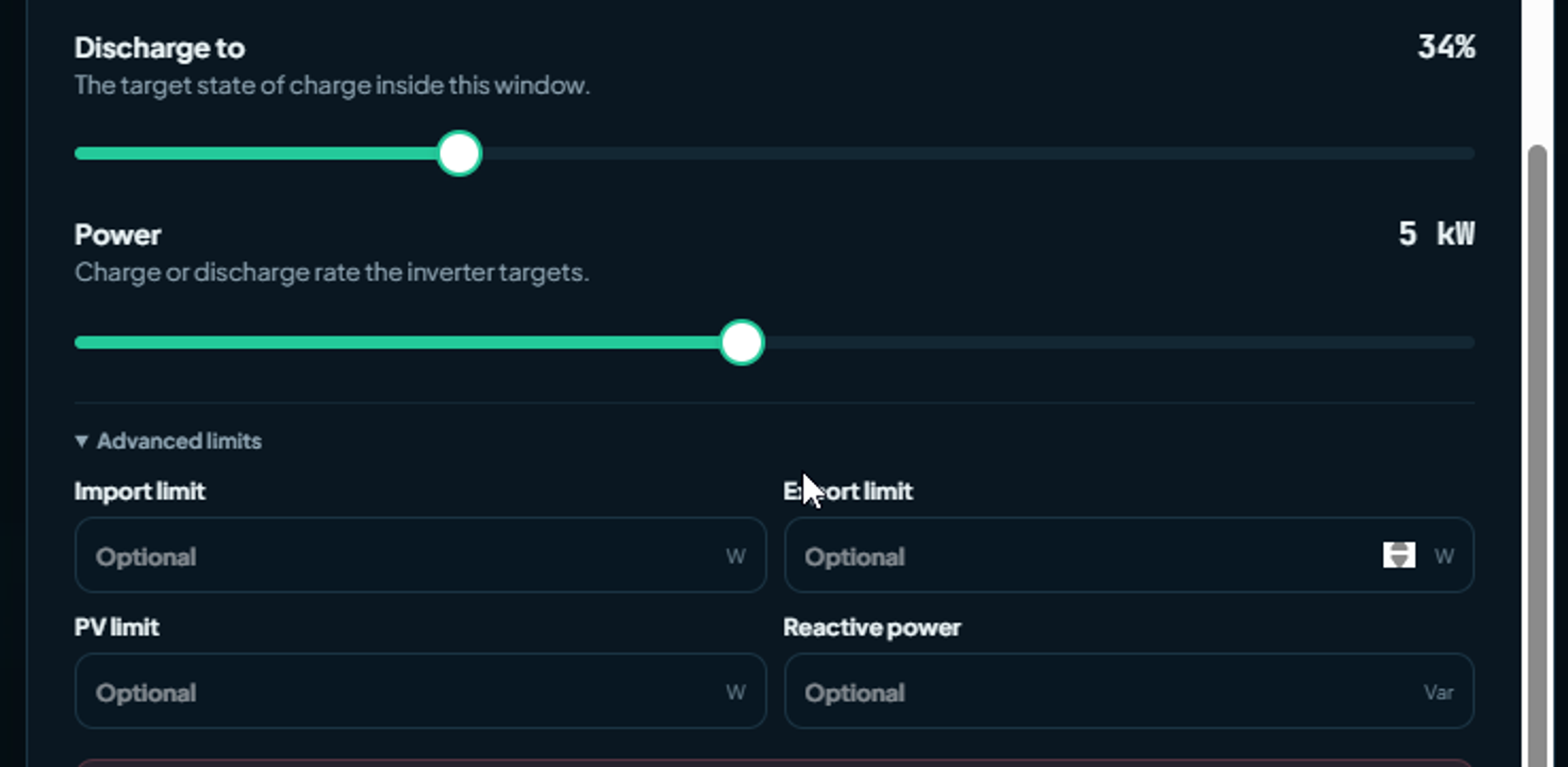

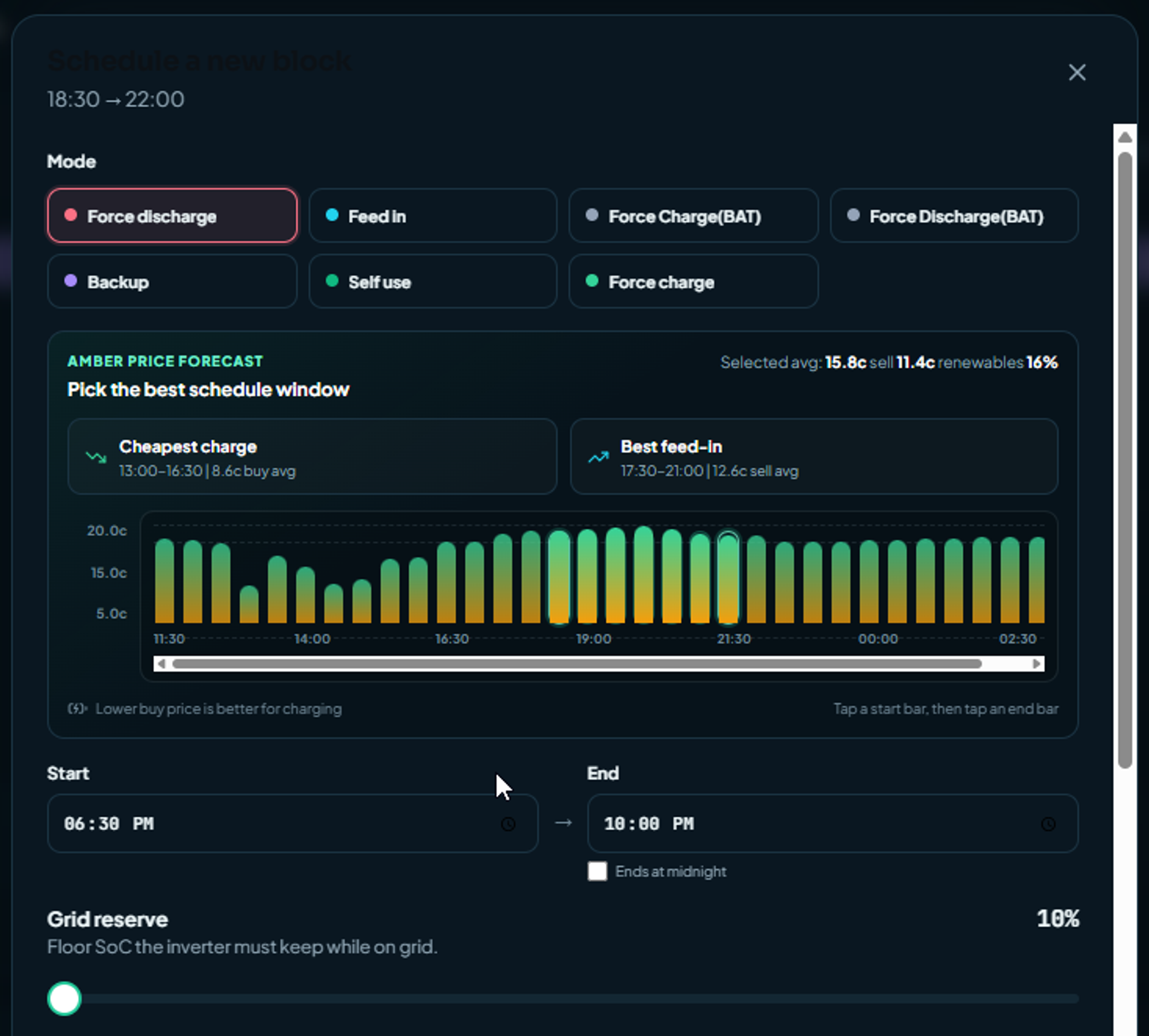

Enable planner to keep a repeating charge and discharge schedule. Periods can use modes such as Self use, Feed-in or Backup. Add period opens a block editor: choose a mode, a start and end time, a grid reserve the inverter must keep while on grid, a target charge level for that window, and a power limit. Price forecast cards can suggest cheaper charge or stronger feed-in windows; they are forecasts, not a promise.

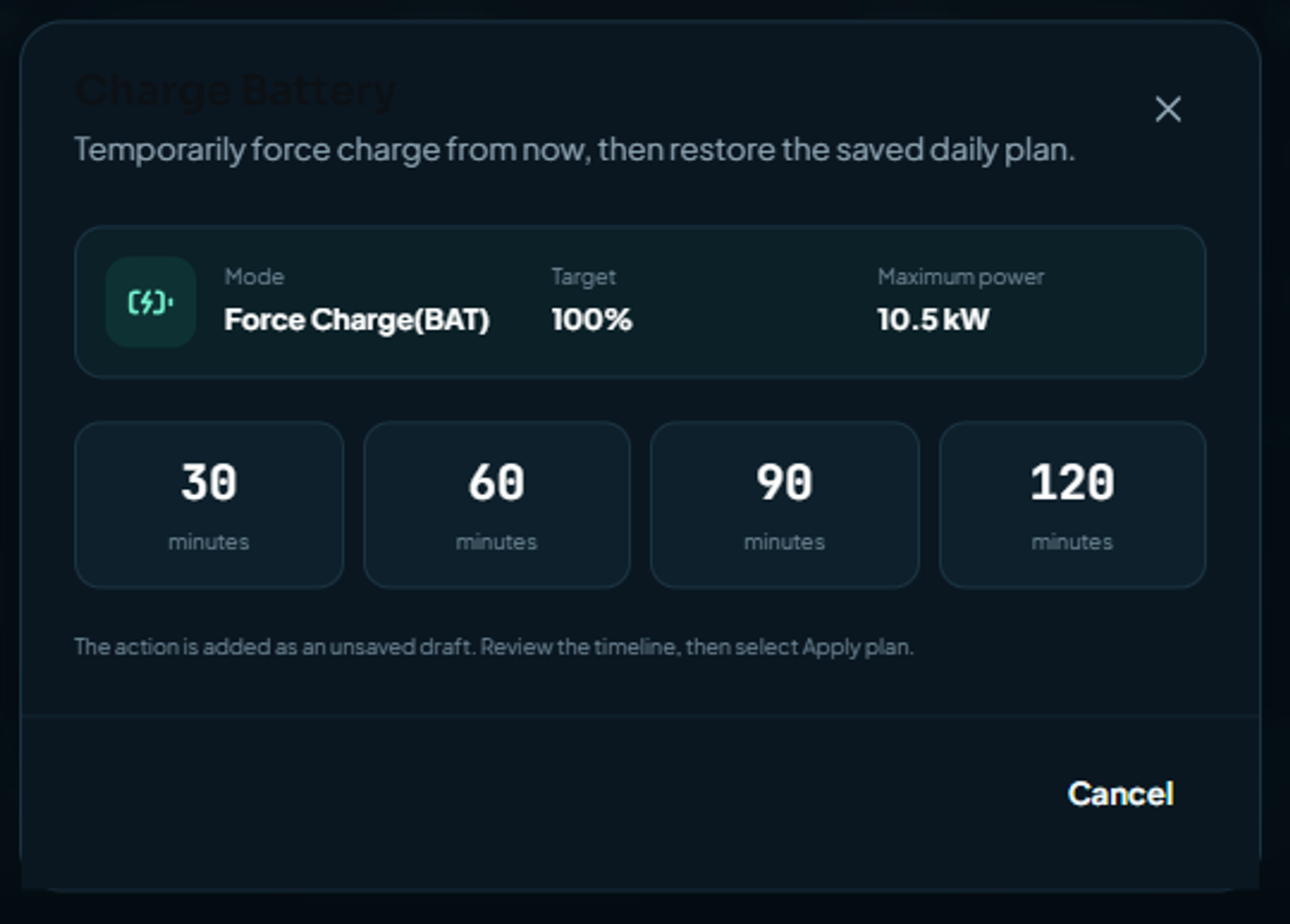

Temporary battery control
Quick actions can charge, discharge or return to Self use for a chosen duration. Review the draft, then apply. Disable planner stops the repeating schedule. These buttons are manual controls. They are separate from Intelligence applying a plan in Full Automation.
