Grid on the Energy Map

The Grid asset shows whether the home is importing or exporting. Open Grid connection for the prices VPPiQ Home is using. The page changes with the price source.

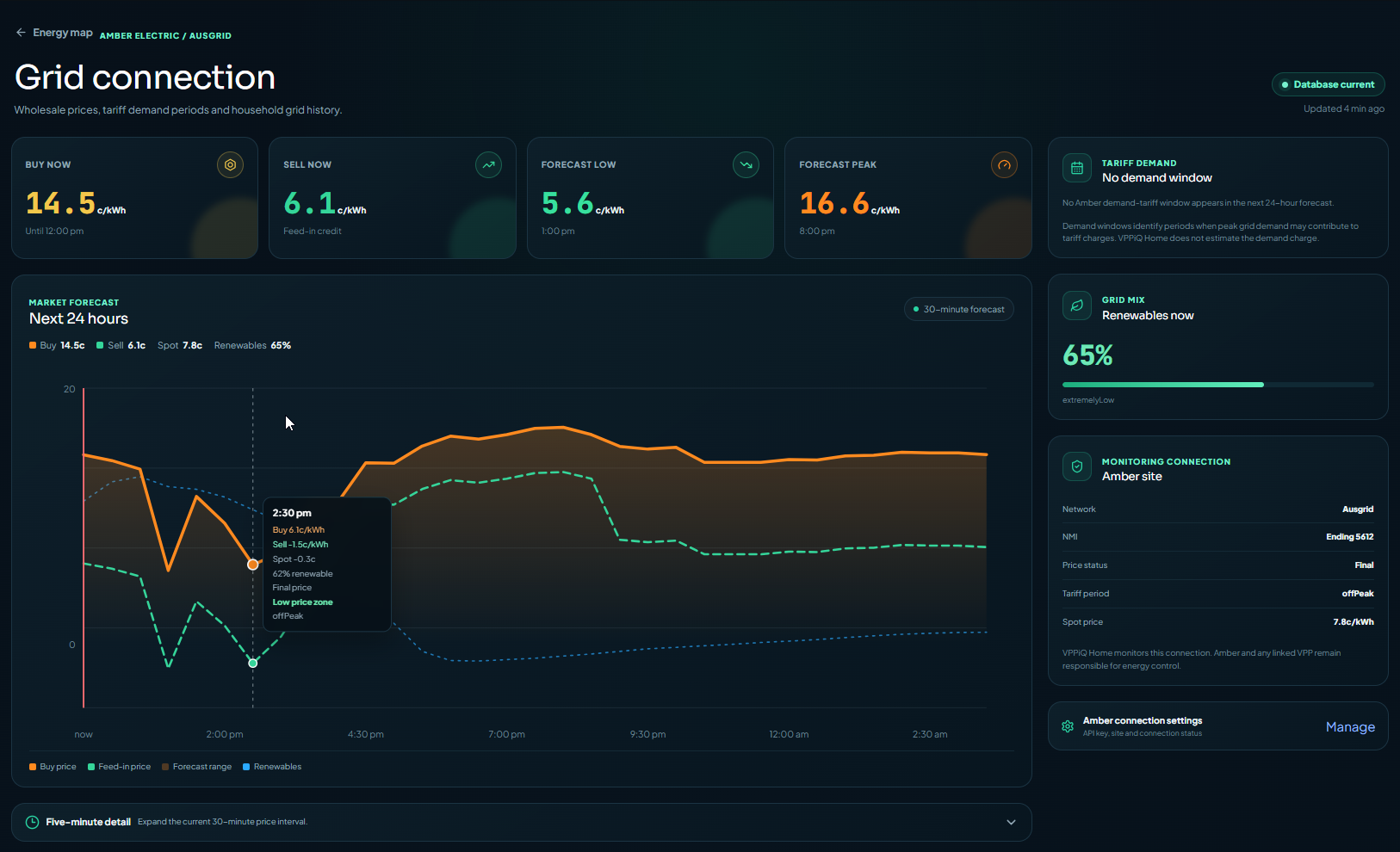

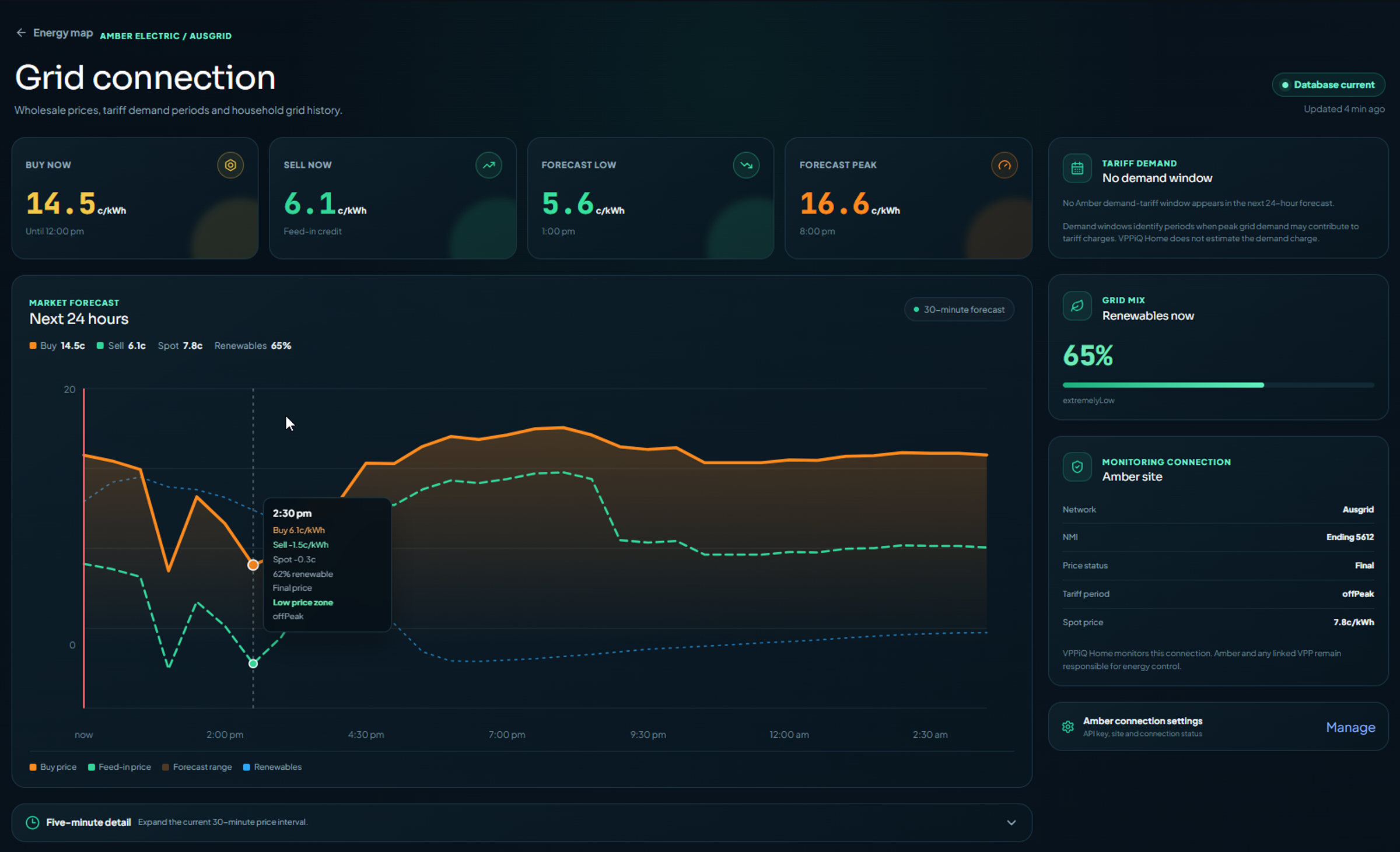

Amber: dynamic wholesale prices

When Amber is connected, Grid shows live wholesale prices. Buy now, sell now, forecast low and peak update through the day. A 24-hour market forecast plots buy price, feed-in and renewables. Demand windows are identified when the feed includes them; VPPiQ Home does not estimate a demand charge dollar amount.

Click to enlarge

Close

This is the dynamic view. Cents change through the day. Manage reviews the Amber connection; it is not a bill.

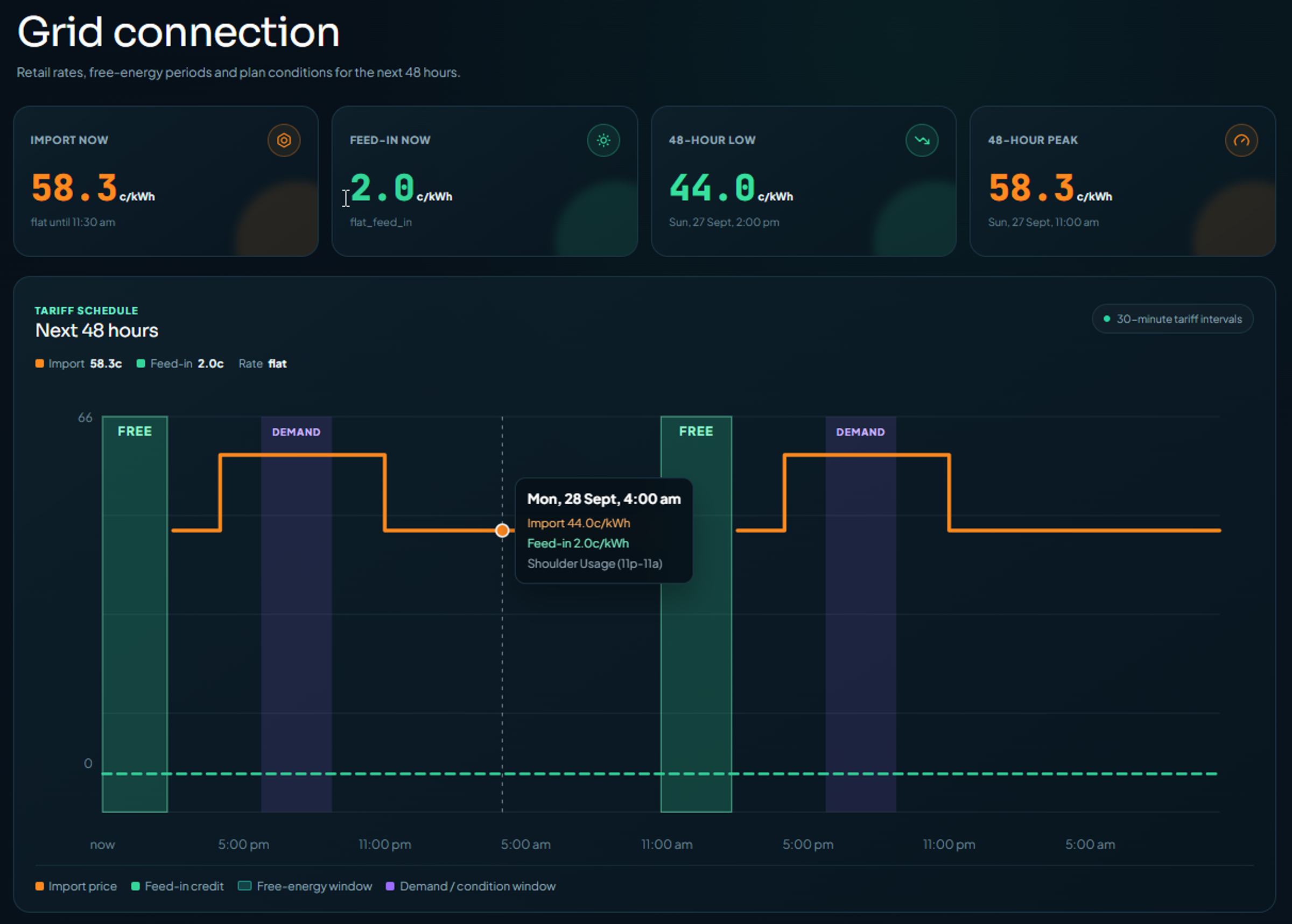

Confirmed retail tariff: static plan rates

When you confirmed a published or bill-matched retail plan, Grid shows that snapshot instead of wholesale prices. Import and feed-in rates follow the plan’s time-of-use windows. Free-energy and demand-condition bands can appear on the 48-hour schedule when the plan includes them.

Click to enlarge

Close

This is the static view. Rates come from the plan you confirmed, not from live wholesale prices.

Click to enlarge

Close

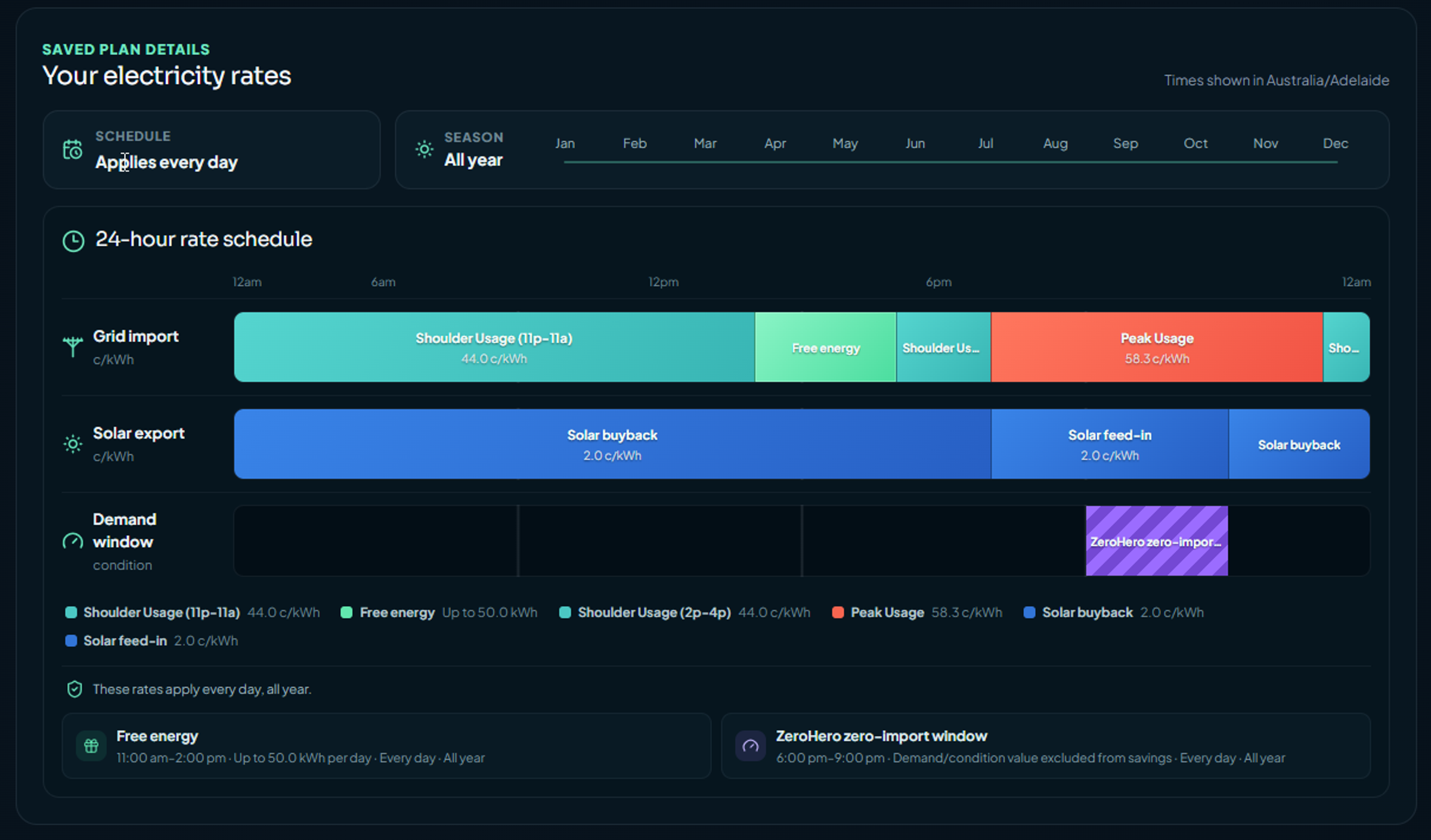

Shoulder, peak, free-energy and feed-in windows are the confirmed terms. A later catalogue refresh does not silently replace them.
